Photoluminescence (abbreviated as PL) is light emission from any form of matter after the absorption of photons (electromagnetic radiation). PL-3000 is base on photoluminescence spectroscopy technology for diamond testing, it can identify natural type Ia, type IIa diamonds and synthetic diamonds. The machine is solid integration, easy to use. It can scan diamonds within 1 second and supports reliable evidence for diamond identification.

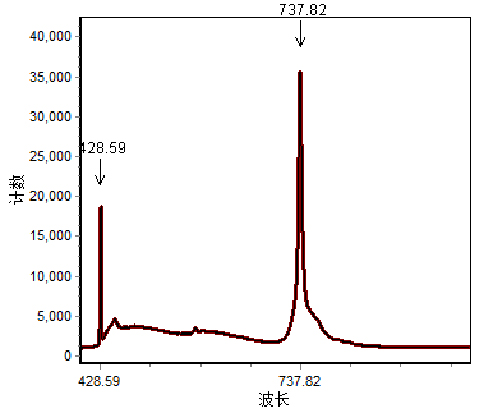

The strong peak of the HTHP treated diamond was found in 575nm, 637nm, 882nm, and the strong peak of the, CVD treated diamond was found in 737nm.
Advantage:
The smallest size of measurement is 0.001 carat.
Full spectrum can be obtained in one second.
The machine is solid integration, easy to use.
sample:
Finished ,bare stone, HPHT, CVD, Ib yellow diamond
|
MODEl |
PL 3000 |
|
sample |
Finished ,bare stone, HPHT, CVD, Ib yellow diamond |
|
Time |
<1 second |
|
Wavelength range |
400-1000nm |
|
Min. size |
0.001ct |
|
Life hours |
5000h |
|
Testing environment |
Normal atmospheric temperature |
|
Weight |
5kg |
|
Size（mm） |
490*300*300 |
|
